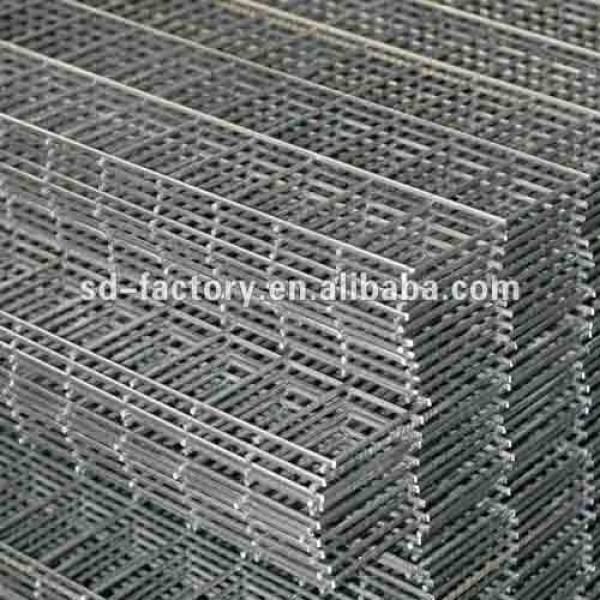

Steel Reinforcing Mesh
Quick Details
| Place of Origin: | Hebei China (Mainland) | Brand Name: | S D | Model Number: | S D |
| Material: | Steel | usage: | construction | ||
| MQ: | 100pc |
Packaging & Delivery
| Packaging Detail: | pallet or as customer's requirement |
| Delivery Detail: | two weeks |
Specifications
concrete mesh
reinforcement mesh
mainly used in building surface, wall, ground, bridge, airport...
Specification list:
|
Mesh |
Wire Diameter |
||
|
In Inch |
In MM |
Wire Gauge |
In MM |
|
1/4" x 1/4" |
6.4mm x 6.4mm |
22BWG-24BWG |
0.7mm-0.6mm |
|
3/8" x 3/8" |
10.6mm x 10.6mm |
19BWG-22BWG |
1.0mm-0.7mm |
|
1/2" x 1/2" |
12.7mm x 12.7mm |
16BWG-23BWG |
1.6mm-0.6mm |
|
5/8" x 5/8" |
16mm x 16mm |
18BWG-21BWG |
1.2mm-0.8mm |
|
3/4" x 3/4" |
19.1mm x 19.1mm |
16BWG-21BWG |
1.6mm-0.8mm |
|
1" x 1/2" |
25.4mm x 12.7mm |
16BWG-20BWG |
1.6mm-0.9mm |
|
1" x 1" |
25.4mm x 25.4mm |
14BWG-21BWG |
2.0mm-0.8mm |
|
11/2" x 11/2" |
38mm x 38mm |
14BWG-19BWG |
2.0mm-1.0mm |
|
1" x 2" |
25.4mm x 50.8mm |
14BWG-16BWG |
2.0mm-1.6mm |
|
2" x 2" |
50.8mm x 50.8mm |
12BWG-16BWG |
2.6mm-1.6mm |
concrete reinforcement wire mesh
low carbon concrete reinforcement mesh
Welded steel mesh reinforcement
1.concrete reinforcement mesh made of low carbon steel wire rod, which undergo a cold-rolling and straightening process and arranged vertically in proper spacing in the welding machine at the line wires and cross wires, joint together by mean of electric resistance spot-welding, also directly welded with hot rolled wire rods
Merits: Great hardness, good elasticity, uniformity spacing high welding strength, hard to deform by trample
2. Technical standard:
Cold rolled ribbed steel bar: CRB 550
Hot rolled ribbed steel bar: HRB 400
We not only produce as per the national standard of welded mesh fabric for reinforcement of concrete but also the products according to the AS/NZS 4671:2001( Australian and New Zealand standard), BS4483 (English standard), DIN488 (Germany standard), SIA 16211 AND NFA35-016 France and etc.
3. The specification of reinforcing mesh
Wire diameter: 4mm-16mm
Space center of neighbor steel bar
Vertical: 100mm, 150mm, 200mm, 300mm
Horizontal: 100-400mm
Width: 0.5mm-3m
Length: 2m-6m
Applications: used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body, making of floors, ceilings, wall body, concrete road, bridge surface, airport, tunnel lining, concrete piping, mesh rack, international partritioning, shelving etc.
